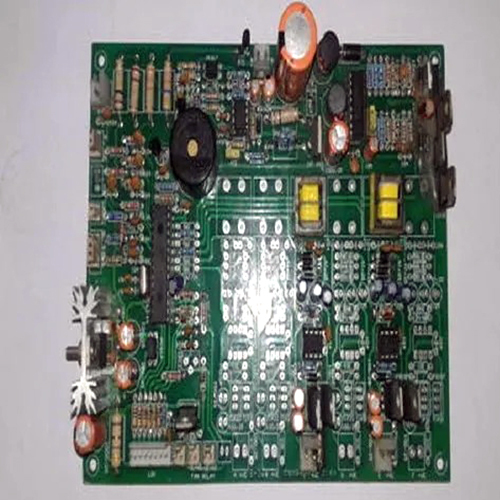

INVT All Drive Control and Power Card

Get a Price/Quote

MOQ : 1 Piece

INVT All Drive Control and Power Card Specification

Phase
Single/Three Phase

Automation Grade
Automatic

IP Rating
IP20

Features
Over-voltage, Over-temperature, Short-circuit Protection

Application
INVT Drive Series - Control and Power Board Replacement

Connectivity Type
Screw Clamp/Terminal Block

Control Type
Digital/Analog compatible

Mounting Type
Panel Mount/PCB Slot Mountable

Processor Type
High-Speed Microcontroller Unit (MCU)

Drive Type
All INVT Drive Models (Universal)

Load Capacity
Suitable for industrial drive loads up to 15 kW

Remote Control
Yes

Frequency
50/60Hz Compatible

Speed Range
Supports full drive speed range

Weight
Approx. 200 grams

Sensor Type
Integrated temperature and voltage sensor

Material
FR4 Grade Epoxy PCB

Power
Rated for up to 5A control circuits

Temperature
-20C to +70C

Voltage
Rated 24V / 230V AC/DC

Communication Protocols
RS485, Modbus

Fuse Protection
On-board fuse for power input

Compatible Models
GD10, GD20, GD200A, GD300, GD350 Series

Diagnostic LEDs
Integrated Power/Status LEDs

Customizability
Custom firmware on request

Isolation Voltage
Up to 1500V between control and power sections

Firmware Update
Supported via onboard ISP

Humidity Range
5% - 95% RH, non-condensing

Conformal Coating
Yes, for moisture and dust resistance

PCB Layer
Multi-layer, double sided

Board Size
Approx. 185mm x 95mm

Stock Availability
Ready stock for bulk purchase

Connector Type
Molex / Phoenix compatible
