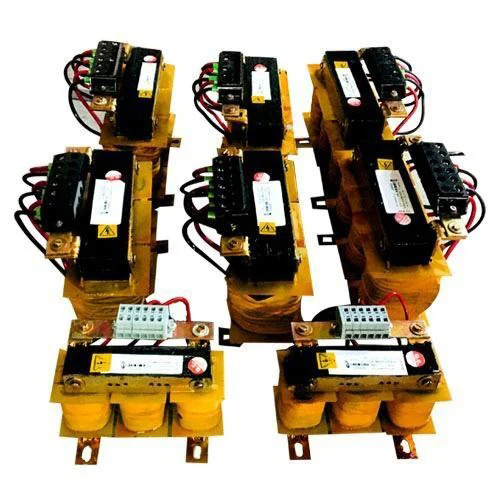

Input and Output Choke

Get a Price/Quote

MOQ : 1 Piece

Input and Output Choke Specification

Weight
As per design and rating

Frequency
50/60 Hz

Control Type
Passive

Application
Variable Frequency Drive (VFD), UPS, Power Conditioning, Industrial Automation

IP Rating
IP20/IP23/IP44 (Customizable)

Automation Grade
Manual

Load Capacity
Custom as per design

Mounting Type
Floor/Panel Mount

Cable Length
As per request

Phase
Single Phase / Three Phase

Features
Low Power Loss, High Efficiency, Compact Design, Thermal Class F/H

Connectivity Type
Terminal/Busbar

Material
Copper Winding, CRGO Lamination Core

Power
Customizable up to 100 kVA

Temperature
-10C to +45C

Voltage
Up to 690 V AC

Surface Finish
Powder Coated Enclosure

Impedance
2% - 6% (standard/custom)

Noise Level
60 dB

Inductance Value
Customizable as per application

Connection Type
Star/Delta/As Required

Cooling Type
Natural Air / Forced Air (optional)

Insulation Class
Class F/H

Compliance Standards
IS 5553/IEC 60076-6

Dielectric Strength
2.5 kV for 1 minute

Short Circuit Withstand
As per IS/IEC standards

Customizable Options
Yes

About Input and Output Choke

Experience optimum performance with our eminent Input and Output Choke, spotlighting renowned reliability for industrial automation, VFDs, and UPS systems. Engineered using famed copper winding and CRGO lamination core, this choke offers custom inductance values, voltage ratings up to 690 V AC, and adaptable power ranges up to 100 kVA. With compliance to IS 5553/IEC 60076-6, insulation Class F/H, and robust dielectric strength, it guarantees safety and durability. Access instant checkout and swift delivery in a powder-coated enclosure, offering high efficiency, low noise, and fully customizable options for every commercial requirement.

Versatile Application and Commercial Advantage

Input and Output Chokes are indispensable across applications like VFDs, UPS, and industrial automation, efficiently reducing electrical noise and harmonics. Their superior impedance ensures smoother operation, particularly in power conditioning environments. These chokes are commercially advantageous due to their compact design, low power loss, and high efficiency, making them essential for industries striving for reliable, long-term electrical performance. Their customizable nature provides flexibility for specific industry requirements, further enhancing their commercial value.

FOB Port, Packaging Details, and Sample Policy

Goods are shipped promptly upon confirmation of your purchase order, utilizing renowned FOB ports in India for streamlined export logistics. Each Input and Output Choke is securely packaged to ensure safe transit. Samples are available upon request, subject to a nominal charge, enabling potential buyers to assess product quality prior to bulk commitments. Our team guarantees that you receive your shipped goods in pristine condition, supporting your project timelines with efficiency.

FAQ's of Input and Output Choke:

Q: How does an Input and Output Choke improve the operation of VFDs and UPS systems?

A: Input and Output Chokes significantly reduce electrical noise, transient voltages, and harmonics, resulting in improved operational stability and enhanced lifespan of sensitive components in VFDs and UPS systems.

Q: What customization options are available for this choke?

A: Customers can choose from custom inductance values, insulation classes (F/H), voltage ratings up to 690 V AC, power handling up to 100 kVA, IP ratings, mounting options, and connection types to best fit their application requirements.

Q: When can I expect the shipment after placing a purchase order?

A: Once your purchase order is confirmed, the goods are typically shipped promptly, with timelines depending on the customization level and production schedule. Our team will provide you with an estimated delivery timeframe upon order confirmation.

Q: Where are your Input and Output Chokes manufactured and exported from?

A: All Input and Output Chokes are manufactured and supplied from our eminent facility in India, utilizing premier materials such as copper winding and CRGO lamination core, and are exported worldwide via leading Indian FOB ports.

Q: What is the process for requesting a sample?

A: To request a sample, simply contact our sales team or fill in the inquiry form. Samples are available upon request and may involve a nominal charge, allowing you to evaluate the product before placing a bulk order.

Q: What are the commercial benefits of using this choke in industrial automation?

A: By integrating this Input and Output Choke, industries benefit from reduced power loss, lower noise operation, and enhanced energy efficiency, all of which contribute to lower maintenance costs and increased reliability in critical automation systems.
