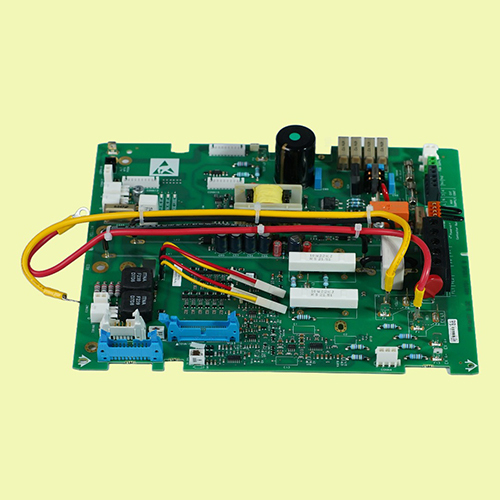

AC10, AC15, AC20, AC30 Power and Control Card

Get a Price/Quote

MOQ : 1 Piece

AC10, AC15, AC20, AC30 Power and Control Card Specification

Automation Grade
Automatic

Load Capacity
Upto 30A

Weight
0.6-1.2 kg

Mounting Type
Panel Mount

Cable Length
Customizable

Processor Type
Microcontroller Based

Frequency
50/60 Hz

Phase
Single/Three Phase

Application
Industrial Power Distribution, Control Panels

Control Type
Digital and Analog

Connectivity Type
Terminal Connector

Features
Overload Protection, Short Circuit Protection, Modular Design

Drive Type
Relay/Contactor

Sensor Type
Current/Voltage Sensor Supported

Remote Control
Yes

IP Rating
IP20

Material
FR Grade PCB, Copper Components

Power
AC10: 10A, AC15: 15A, AC20: 20A, AC30: 30A

Temperature
-10C to +55C

Voltage
110-440V AC

Dielectric Strength
2000V AC for 1 min

Cooling Method
Natural Air Cooled

Insulation Resistance
>20M at 500 V DC

Relay Output
Yes

Size
Standard DIN Rail

Response Time
< 40 ms

PCB Thickness
1.6 mm

Model Number
AC10, AC15, AC20, AC30

About AC10, AC15, AC20, AC30 Power and Control Card

Experience the acclaimed AC10, AC15, AC20, and AC30 Power and Control Cards-an enviable collection crafted for industrial power distribution and control panel solutions. Their ephemeral availability underscores their inestimable value. Each card is brilliantly engineered to DIN Rail standards, with natural air cooling, microcontroller precision, and robust relay outputs. They feature FR Grade PCBs, copper components, overload and short-circuit protection, and IP20 rating for reliable performance across wide temperature and voltage ranges. Modular design and customizable cables cater to evolving automation demands. Limited stock available-secure these essential innovations now.

Advanced Features & Competitive Edge

The AC10, AC15, AC20, and AC30 Power and Control Cards offer exceptional reliability with overload and short circuit protection, microcontroller-based processing, and support for both digital and analog control. Modular design, customizable cable lengths, and remote control capabilities establish a brilliant technological edge. Their enviable IP20 rating, robust FR Grade PCB, and relay/contactor drive types ensure performance longevity, granting users unmatched peace of mind for every industrial application.

Top Export & Domestic Markets - Robust Packaging

Enjoy streamlined drop-off and delivery in main export markets across Asia, the Middle East, and Europe, ensuring your valuation expectations are met globally. Every AC series card is securely boxed or wooden crated for added durability. Our domestic mar extends from major industrial hubs to emerging regions across India, driven by a robust supply network and reliable after-sales service, maintaining trust and satisfaction throughout the industrial sector.

FAQ's of AC10, AC15, AC20, AC30 Power and Control Card:

Q: How can I benefit from the overload protection on AC10, AC15, AC20, and AC30?

A: The integrated overload protection guides the system to shut down safely when loads exceed designated thresholds, ensuring inestimable equipment longevity and minimizing downtime, which is especially valued in critical industrial environments.

Q: What is the primary usage of these Power and Control Cards?

A: These cards are primarily used in industrial power distribution and control panels, supporting both digital and analog automation for broad compatibility across industrial automation, monitoring, and protection setups.

Q: When should I choose between the AC10, AC15, AC20, and AC30 models?

A: Choose based on your load requirement: AC10 supports 10A, AC15 for 15A, AC20 for 20A, and AC30 for 30A, each ensuring brilliant performance and enviable adaptability for specific application needs.

Q: Where can these cards be installed for optimal efficiency?

A: Installation is optimized on standard DIN Rails using secure panel mounting. Their IP20 protection, robust construction, and customizable configuration make them ideal for both centralized and distributed industrial environments.

Q: What process is followed for packaging and delivery of AC series cards?

A: Each card undergoes careful drop-off processing, securely packed in boxes or wooden crates to ensure safe transit. Both domestic and export orders are dispatched swiftly to maintain product integrity and customer satisfaction.
