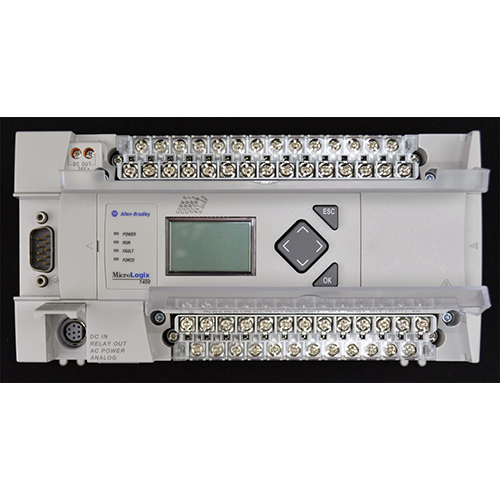

MicroLogix CPU and Spare

Get a Price/Quote

MOQ : 1 Piece

MicroLogix CPU and Spare Specification

Control Type
PLC-Based

Connectivity Type
RS232, RS485, Ethernet

IP Rating
IP20

Weight
Approx. 250g

Speed Range
Standard

Sensor Type
Compatible with Digital/Analog Sensors

Automation Grade
Automatic

Processor Type
Microprocessor-based

Mounting Type
DIN Rail / Panel Mount

Application
Industrial Automation Control

Features
Modular, Expandable, Compact Design

Phase
Single Phase

Remote Control
Yes

Frequency
50/60 Hz

Load Capacity
Depend on Expansion Module

Material
High-quality Industrial Plastic and Metal

Power
24V DC, 60 mA

Temperature
0C to 55C (Operating)

Voltage
24V DC

Backup Memory Module
Supported

Protection
Short Circuit and Overload protection included

Display Type
LED Status Indicators

Real Time Clock
Built-in RTC

Model Number
MicroLogix 1100/1200/1400 Series

Programming Software
RSLogix 500

Output Type
Relay/Transistor outputs

Input Type
Digital and Analog Input Supported

Expansion Capability
Yes, up to 6 modules

About MicroLogix CPU and Spare

Experience kingly automation with MicroLogix CPU and Spare sets, delivering a lavish suite of customizable options adaptable for diverse industrial environments. These ephemeral yet mighty PLCs from the 1100/1200/1400 series boast expansion capabilities for up to six towering modules, supporting both digital and analog inputs. Relay and transistor outputs, advanced programming via RSLogix 500, and enduring protection against short circuits elevate operational reliability. Crafted from high-quality plastic and metal, these CPUs are crowned with features like built-in RTC, modular compactness, and extensive connectivity-signals of a true automation monarch.

Commercial Powerhouse with Extra Features

MicroLogix CPU and Spare modules are crucial for a wide array of industrial automation controls, from manufacturing plants to energy management systems. Used extensively for process monitoring, remote operations, and complex logic control, these modules provide robust support for both digital and analog sensors. Extra features include a modular, expandable architecture, real-time clock, and comprehensive protection mechanisms, ensuring reliability and adaptability in demanding commercial environments. Their compact, PLC-based control makes them an essential choice for integrating automation seamlessly across industries.

Sample Availability, Payment, and Export Markets

Supply of MicroLogix CPU and Spare samples is offered upon request, giving customers a competitive edge before committing to large-scale procurement. Asking price and purchase expenditure can be discussed with flexible payment terms tailored for ease of transaction. The series is exported to key global markets, including Asia, Europe, and the Middle East, making it a preferred choice for businesses seeking high-performance automation solutions. Reliable after-sales service and technical support further enhance this product's export potential.

FAQ's of MicroLogix CPU and Spare:

Q: How can I expand the MicroLogix 1100/1200/1400 CPU for increased functionality?

A: The MicroLogix series supports expansion with up to six additional modules, enabling you to enhance input/output capabilities according to your application's requirements.

Q: What process is involved in programming the MicroLogix CPU?

A: Programming is accomplished using RSLogix 500 software, which provides a user-friendly interface for ladder logic and instruction-based control to customize automation sequences efficiently.

Q: When is it beneficial to use both digital and analog inputs on the MicroLogix CPU?

A: Utilizing both input types is ideal when you have applications requiring monitoring of on/off signals alongside variable signals, such as temperature or pressure, offering greater operational versatility.

Q: Where can the MicroLogix CPU be mounted for optimal operation?

A: The unit supports both DIN rail and panel mounting, allowing flexible installation in control cabinets or machinery enclosures in your facility.

Q: What are the main commercial applications for the MicroLogix CPU and Spare?

A: It is primarily used in industrial automation for process control, remote system management, and integration with digital/analog sensors to streamline complex manufacturing or monitoring tasks.

Q: How does the built-in protection benefit ongoing operations?

A: Short circuit and overload protection safeguard equipment and ensure continuous, reliable performance, reducing downtime and minimizing maintenance.
